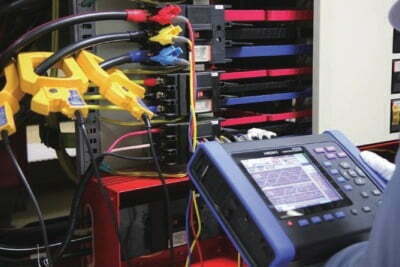

Jual Hioki PW3198 Power Quality Analyzer Dengan Fitur Terlengkap
Harga Jual Hioki PW3198 Power Quality Analyzer Dengan Fitur Terlengkap
Katalog dan Harga Jual Hioki PW3198 Lengkap
Jika anda sedang mencari jual hioki PW3198 kami akan menjabarkan fitur fitur serta spesifikasi yang terdapat pada alat ini, selain canggih alat ini juga memiliki ketahanan fisik yang terbaik dengan kemasan luar yang baik dan teknologi dalam yang terbaik.
| Measurement line type | Single-phase 2-wire, Single-phase 3-wire, Three-phase 3-wire or Three-phase 4-wire plus one extra input channel (must be synchronized to reference channel during AC/DC measurement) |
|---|---|
| Voltage ranges | Voltage measurement: 600.00 V rms Transient measurement 6.0000 kV peak |
| Current ranges | 500.00 mA to 5.0000 kA AC (depends on current sensor in use) |
| Power ranges | 300.00 W to 3.0000 MW (determined automatically based on voltage and current range in use) |
| Basic accuracy | Voltage: ±0.1% of nominal voltage Current: ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy Active power: ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy |
| Measurement items | 1. Transient over voltage : 2 MHz sampling 2. Frequency cycle : Calculated as one cycle, 40 to 70 Hz 3. Voltage (1/2) RMS: one cycle calculation refreshed every half cycle Current (1/2) RMS: half-cycle calculation 4. Voltage swell, Voltage dips, Voltage interruption 5. Inrush current 6. Voltage waveform comparison 7. Instantaneous flicker value: As per IEC61000-4-15 8. Frequency: Calculated as 10 or 12 cycles,40 to 70 Hz 9. 10-sec frequency: Calculated as the whole-cycle time during the specified 10 s period, 40 to 70 Hz 10. Voltage waveform peak, Current waveform peak 11. Voltage, Current, Active power, Apparent power, Reactive power, Active energy, Reactive energy, Power factor, Displacement power factor, Voltage unbalance factor, Current unbalance factor (negative-phase, zero-phase) 12. High-order harmonic component (voltage/ current): 2 kHz to 80 kHz 13. Harmonic/ Harmonic phase angle (voltage/ current), Harmonic power: 0th to 50 th orders 14. Harmonic voltage-current phase angle: 1th to 50 th orders 15. Total harmonic distortion factor (voltage/ current) 16. Inter harmonic (voltage/ current): 0.5 th to 49.5 th order 17. K Factor (multiplication factor) 18. IEC Flicker, Δ V10 Flicker |
| Record | 55 weeks (with repeated recording set to [1 Week], 55 iterations) 35 days (with repeated recording set to [OFF]) |
| Interfaces | SD/SDHC memory card, RS-232C, LAN (HTTP server funtion), USB2.0 |
| Display | 6.5-inch TFT color LCD (640 × 480 dots) |
| Power supply | AC Adapter Z1002 (12 V DC, Rated power supply 100 V AC to 240 V AC, 50/60 Hz) Battery Pack Z1003 (Ni-MH 7.2 V DC 4500 mAh) |
| Dimensions and mass | 300 mm (11.81 in) W × 211 mm (8.31 in) H × 68 mm (2.68 in) D (excluding protrusions), 2.6 kg (91.7 oz) (including battery pack) |
| Accessories | Instruction manual ×1, Measurement guide ×1, Voltage cord L1000 ×1 set (Red/Yellow/Blue/Gray, each 1, Black ×4, Alligator clip ×8), Spiral tube ×20, Input Cable Labels ×1, AC adapter Z1002 ×1, Strap ×1, USB cable (1 m 3.28 ft length) ×1, Battery pack Z1003 ×1, SD memory card 2GB Z4001 ×1 |
Distributor Hioki Indonesia siap untuk menjual hioki PW3198 keberbagai daerah di Indonesia. Cemandiri Jual Hioki PW3198 untuk wilayah cikarang, karawang, surabaya, balikpapan dan lainnya.
