HIOKI CM4001 AC Leakage Clamp Meter

Product Description

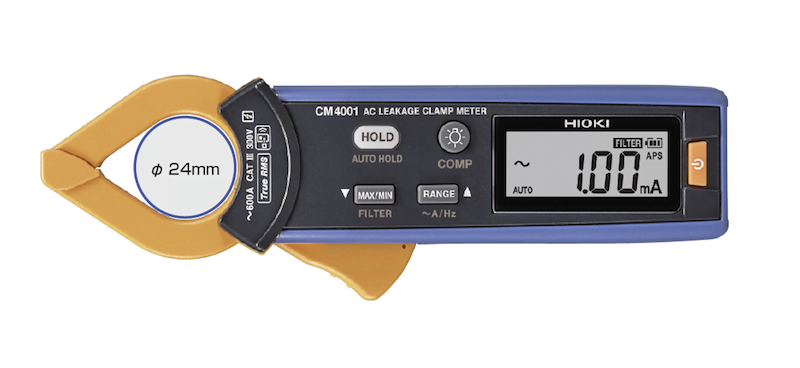

HIOKI CM4001 AC Leakage Clamp Meter

Jual HIOKI CM4001 AC Leakage Clamp Meter

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. Use the CM4001 to easily clamp within crowded cables in order to reduce work time and improve safety. With guaranteed accuracy from 0.60 mA to 600.0 A, the CM4001 provides a one-stop solution for a variety of applications. A built-in comparator function also helps you find issues much faster.

Key Features

• Slim jaws let you work with ease

• Measure everything from leakage to load

• Identify intermittent GFCI and RCD trips to prevent unplanned equipment downtime by testing for earth leakage current

• Find issues faster with comparator function

• Wireless support.

Transfers measurements to your smartphone or tablet and allows you to quickly create reports with field photos and drawings. (Optional Wireless Adapter Z3210 is necessary)

Basic specifications (Accuracy guarantee period: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year)

AC Current range 60.00 mA/ 600.0 mA/ 6.000 A/ 60.00 A/ 600.0 A, 5 ranges (40 Hz to 1 kHz, True RMS)
Basic accuracy (45-66 Hz): ±1.5% rdg ±5 dgt (60.00 mA to 6.000 A), ±2.5% rdg ±5 dgt (60.00 A to 600.0 A)
Guaranteed accuracy: from 0.60 mA to 600.0A
AC Voltage range N/A
Frequency range 40.0 Hz to 999.9 Hz
Crest factor 4.5 (4000 counts or less)
3 (more than 4000 counts, 6000 counts or less)
Filter function Cut off frequency: 180 Hz ±30 Hz at filter ON (-3 dB)
Output function N/A
Other functions Comparator function, record Max/Min/Avg value, backlight, data hold, auto power off, AC inrush function
Display Display refresh rate: 5 times/s
Power supply LR03 alkaline battery × 1; 32 hours of continuous use
Core jaw diameter φ 24 mm (0.94 in)
Dimensions and mass 37 mm (1.46 in) W × 160 mm (6.30 in) H × 27 mm (1.06 in) D, 115 g (4.1 oz.)
Accessories Carrying case × 1, Strap × 1, Instruction manual × 1, Operating Precautions × 1, LR03 alkaline battery × 1

Jual Hioki CM4001 AC Leakage Clamp Meter

Cemandiri jual Hioki CM4001 AC Leakage Clamp Meter dengan harga yang kompetitif dan layanan purna jual yang lengkap. Dapatkan berbagai alat ukur dari Hioki di distributor resmi Hioki Indonesia.
