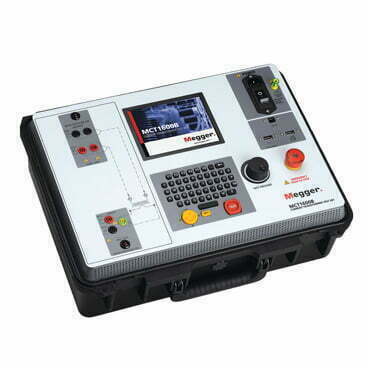

Megger MCT1605

Product Description

Catalogs : Data sheet MCT1605 .pdf

  •  One button automated test
  •  Displays multiple instantaneous Saturation Curves with Knee Point
  •  Integrated 1 kV DC insulation test system
  •  “Save & Print Later” with USB stick
  •  Fast data entry using full QWERTY keyboard
  •  1600 VAC Saturation Test Voltage

The Megger MCT1605 test set is a lightweight, robust, portable unit used to automatically or manually perform saturation, ratio, polarity, demagnetizing tests and insulation tests on current transformers. The MCT provides a microprocessor controlled variable voltage output and precision instrumentation for automatically testing single and multi-ratio CTs. The MCT1605 possesses microprocessor controlled output voltage with precision instrumentation and storage, reducing testing time and increasing productivity. The MCT1605 will directly connect to multi ratio CT’s and perform all three tests – saturation, ratio and polarity – on all taps with the push of a button and without changing leads. The MCT1605 has a large display, permitting the user to easily read all pertinent data while the test is being performed and providing the ability to view the current transformer’s saturation curve.

Current transformers can be tested in their equipment configuration, such as being mounted in transformers, oil circuit breakers or switchgear. It is necessary for the equipment to be completely isolated from the electrical system prior to testing
