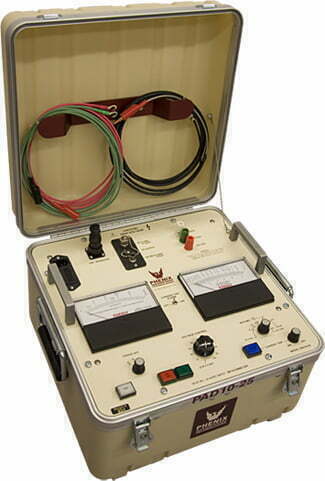

Phenix Technologies Combination Hipot Megaohmmeter Tipe PAD10-25

Phenix Technologies offers an extremely valuable line of lightweight and ruggedly constructed Hipot/Megohmmeters for Dielectric Withstand Testing, Insulation Resistance and Leakage Current Measurements of switchgear, cables, motors, generators, and many other devices.

Performing routine testing of insulation is beneficial to ensure the safety of your workers, minimize and eliminate downtime and prevent electrical hazards.  In addition, these tests will be helpful in scheduling repairs or making a necessary replacement before a serious problem occurs.

AC and DC Testing Capability   :

10 kV AC and 25 kV DC

Leakage Current Measurements :

.02 to 5,000 microamps DC
.1 to 10 milliamps AC

Insulation Resistance Measurements :

Values up to 150,000 Megohms
At test voltages of 0.5, 2.5, 5, or 15 kV DC

Product Description

Phenix Technologies offers an extremely valuable line of lightweight and ruggedly constructed Hipot/Megohmmeters for Dielectric Withstand Testing, Insulation Resistance and Leakage Current Measurements of switchgear, cables, motors, generators, and many other devices.

Performing routine testing of insulation is beneficial to ensure the safety of your workers, minimize and eliminate downtime and prevent electrical hazards.  In addition, these tests will be helpful in scheduling repairs or making a necessary replacement before a serious problem occurs.

AC and DC Testing Capability   :

10 kV AC and 25 kV DC

Leakage Current Measurements :

.02 to 5,000 microamps DC
.1 to 10 milliamps AC

Insulation Resistance Measurements :

Values up to 150,000 Megohms
At test voltages of 0.5, 2.5, 5, or 15 kV DC
