Informasi Lengkap Spesifikasi Hioki PQ3198-92
Hioki PQ3198-92 Power Quality Analyzer Japan Quality
Mengetahui Spesifikasi lengkap dari Produk PQ3198-92
Pada artikel kali ini kami akan mengupas tuntas secara mendalam spesifikasi dari produk Power quality analyzer dari hioki yaitu produk HIOKI PQ3198-92. Pengukur dan penganalisis daya portabel Hioki adalah instrumen pengukur daya terbaik di kelasnya untuk mengukur garis satu hingga tiga fase dengan tingkat presisi dan akurasi yang tinggi. PQ3198 yang baru dan lebih baik adalah penganalisis kualitas daya untuk memantau dan merekam anomali catu daya, memungkinkan penyebabnya diselidiki dengan cepat, dan juga untuk menilai masalah catu daya seperti penurunan tegangan, kedipan, harmonisa, dan masalah kelistrikan lainnya. Fitur baru termasuk kemampuan untuk menggerakkan sensor arus langsung dari PQA dan kemampuan perekaman yang ditingkatkan.
Measurement Line Type
Single-phase 2-wire, Single-phase 3-wire, Three-phase 3-wire or Three-phase 4-wire plus one extra input channel for voltage, current, power measurement (AC or DC measurement)
Voltage Ranges
Voltage measurement: 600.00 V rms
Transient measurement 6.0000 kV peak
Current Ranges
500.00 mA to 5.0000 kA AC (depends on current sensor in use)
Power Ranges
300.00 W to 3.0000 MW (determined automatically based on voltage and current range in use)

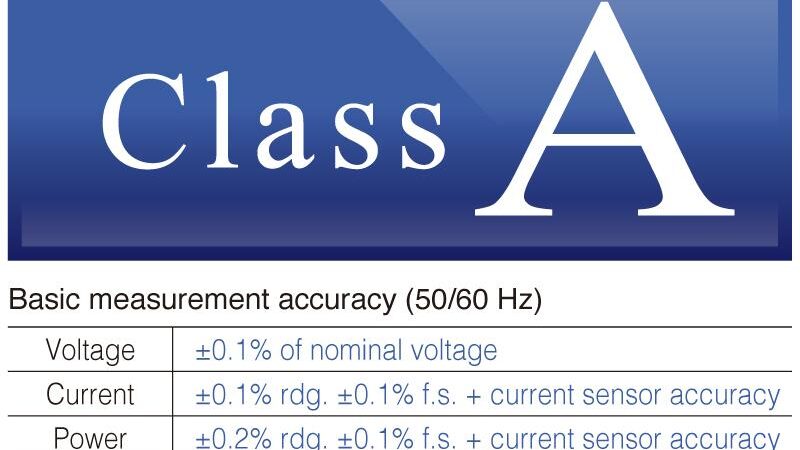

Basic Accuracy
Voltage: ±0.1% of nominal voltage
Current: ±0.1 % rdg. ±0.1 % f.s. + current sensor accuracy
Active power: ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy
Measurement Items
1. Transient voltage : 2 MHz sampling
2. Frequency cycle : Calculated as one cycle, 40 to 70 Hz
3. Voltage (1/2) RMS: one cycle calculation refreshed every half cycle
Current (1/2) RMS: half-cycle calculation
4. Voltage swell, Voltage dips, Voltage interruption
5. Inrush current
6. Voltage waveform comparison
7. Instantaneous flicker value: As per IEC61000-4-15
8. 200 ms frequency: Calculated as 10 or 12 cycles,40 to 70 Hz
9. 10 sec frequency: Calculated as the whole-cycle time during the specified 10 s period, 40 to 70 Hz
10. Voltage waveform peak, Current waveform peak
11. Voltage, Current, Active power, Apparent power, Reactive power, Active energy, Reactive energy, Power factor, Displacement power factor, Voltage unbalance factor, Current unbalance factor, and efficiency
12. High-order harmonic component (voltage/ current): 2 kHz to 80 kHz
13. Harmonic/ Harmonic phase angle (voltage/ current), Harmonic power: 0th to 50 th orders
14. Harmonic voltage-current phase angle: 1th to 50 th orders
15. Total harmonic distortion factor (voltage/ current)
16. Inter harmonic (voltage/ current): 0.5 th to 49.5 th order
17. K Factor (multiplication factor)
18. IEC Flicker, Δ V10 Flicker
Record
Repeated ON: 1 year, Maximum recording event: 9999 × 366 days (up to 9999 events per day)
Repeated off: 35 days, maximum recording event: 9999 events
Interfaces
SD/SDHC memory card, LAN (HTTP server function / FTP function), USB2.0 (for communication)
Display
6.5-inch TFT color LCD (640 × 480 dots)
Power supply
AC adapter Z1002 (100 V to 240 V AC, 50/60 Hz, rated current 1.7 A), Battery Pack Z1003 (Continuous use: 180 minutes, Charging time: Max. 5 hr 30 m with AC adapter)
Dimensions and mass
300 mm (11.81 in)W × 211 mm (8.31 in)H × 68 mm (2.68 in)D, 2.6 kg (91.7 oz) (including Battery Pack Z1003)
Accessories
Instruction manual ×1, Measurement guide ×1, Voltage Cord L1000 ×1 set (Red/ Yellow/ Blue/ Gray each 1, Black 4, 3m (9.84ft) length, Alligator clip ×8), Color clip, AC Adapter Z1002 ×1, Strap ×1, USB cable (1 m 3.28 ft length) ×1, Battery pack Z1003 ×1, SD Memory Card 2GB Z4001 ×1, Application software (PQ ONE) ×1
Demikian informasi lengkap tentang spesifikasi dari HIOKI PQ3198-92 yang di ulas oleh cemandiri, distributor hioki di indonesia. Authorized distributor dan agen penjualan produk power quality analyzer Hioki.
