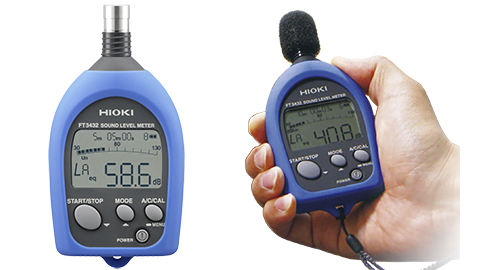

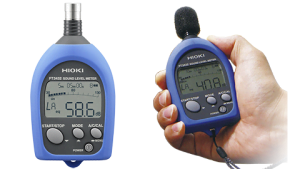

Jual Hioki FT3432 Sound Level Meter
Cemandiri Jual Hioki FT3432 Sound Level Meter
Spesifikasi dan Informasi Jual Hioki FT3432 Sound Level Meter
Cemandiri jual produk alat ukur suara atau sound level meter yang memiliki range pengukuran yang lebar dengan analog input untuk perekaman dan analisa suara yang lebih maju. Hioki FT3432 sound level meter ini digunakan pada management kebisingan yang memfasilitasi pengukuran kebisingan seperti pada pabrik dan sekolah atau lingkungan yang dekat dengan mesin dll , yang berguna untuk lebih meyakinkan standar lingkungan yang nyaman. Ukuranya yang kecil dan ringan hanya 150gram, alat ukur ini dapat mengukur level suara. level exposure suara dan maksimal level suara serta C-weighted peak sound level.
Key Features
• Simple operation, no range switching needed
• Compact, lightweight design for easy one-handed operation
• 30 dB to 137 dB
• Analog output
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
| Applicable standards | IEC 61672-1: 2013 Class 2, JIS C 1509-1:2005 Class2, JIS C 1516:2014 Class2 |
|---|---|
| Measurement functions | Sound level, Equivalent continuous sound level, Sound exposure level, Maximum Sound level, C weighting peak sound level (measurement possible only when peak range is selected) |
| Measurement times | 1/5/10 minutes, or 1 hour |
| Frequency weighting characteristics | A weighting, or C weighting |
| Measurement level range | [Wide range] A weighting: 30 dB to 137 dB, C weighting: 36 dB to 137 dB [Peak range] A weighting: 65 dB to 137 dB, C weighting: 65 dB to 137 dB |
| Frequency range | 20 Hz to 8000 Hz |
| Microphone | 1/2-inch electret condenser microphone |
| Time weighting characteristics | Fast or Slow |
| Functions | Storing processing results (Storing capacity : 199 pieces of data), Warning indications, Bar graph |
| Output | DC output connector: DC output: 3 V (full scale), 25 mV/dB, Output impedance: 50 Ω AC monitor output connector: AC output: 1 Vrms +600 mVrms, -400 mVrms (at 110 dB) (Upper limit: 1.8 Vrms), Output impedance: 600 Ω, Frequency weighting characteristics: Z weighting |
| Power supply | LR03 (AAA) alkaline battery ×2, Continuous use 9 hr at wide range, R03 (AAA) manganese battery ×2, Continuous use 3 hr at wide range, Consumption: 80 mA |
| Dimensions and mass | 63 mm (2.48 in) W × 120 mm (4.72 in) H × 23.5 mm (0.93 in) D, 105 g (3.7 oz), (including batteries) |
| Accessories | Wind screen WS-14 ×1, Hand strap VM-63-017 ×1, Windscreen fall out prevention rubber NL-27-014 ×1, Silicon cover NL-27-089 ×1, Carrying Case 9757 ×1, LR03 (AAA) alkaline batteries ×2, Instruction manual ×1 |
Cemandiri jual produk soundlevel meter hioki dengan layanan after sales yang lengkap, temukan berbagai produk sound level meter lainnya hanya di Cemandiri. pusat penjualan alat ukur suara. Distributor Hioki yang menjual berbagai alat ukur seperti sound level meter, lcr meter , multimeter dan lain sebagainya.
