• Simple pass/fail indication
•   Battery powered with rechargeable options
•   Testing portable and fixed electrical equipment
•   Tough, rubber armoured with built-in front cover
•   Tough, scratch resistant, display window
•   Includes 250V Insulation and Leakage testing for safe IT testing and surge protected devices

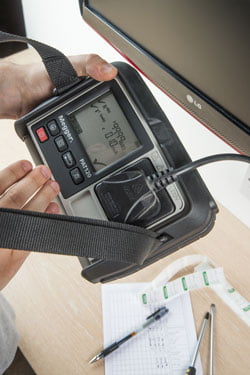

The PAT120 is designed with a simple interface and fully automated testing and fixed PASS limits to help small business owners meet their responsibilities in ensuring electrical equipment is maintained in a safe condition as per the safety regulations.

PAT150 / PAT150R

Additionally:

•   10 mA and 30 mA Portable RCD lead testing
•   Adjustable PASS test limits
•   Substitute and Mains powered leakage testing

The PAT150 is perfectly configured for service and repair engineers and for training centres that require a wider range of functionality and more control of the testing process. Test limits and test duration can be changed, as well as test lead resistance nulled and individual tests run for Insulation, continuity and current leakage measurements: it is ideally suited to diagnostic work and training. The PAT150 can also power equipment directly from the electrical supply providing operational testing and the ability to test equipment with electrically latched switches.

All PAT100 testers are lightweight, compact, battery powered testers for testing the safety of portable electrical equipment.
