Mengulik Battery Tester Hioki BT3554-50
Jual Hioki BT3554-50 , Hioki BT3554-51 , Hioki BT3554-52
Spesifikasi Lengkap Produk Battery Tester Hioki BT3554
Sederhanakan diagnostik UPS dan baterai timbal-asam dengan panduan pengukuran dan perekaman.
Secara akurat menilai kerusakan baterai timbal-asam menggunakan teknologi eksklusif.
Battery Tester BT3554-50 yang baru menetapkan standar baru untuk diagnostik baterai UPS dan timbal-asam. Karena resistansi internal dan tegangan baterai diukur menggunakan metode impedansi, diagnostik dapat dilakukan saat baterai terhubung ke perangkat induknya, tanpa membuatnya offline. Teknologi pengurangan kebisingan eksklusif memungkinkan pengukuran yang lebih akurat, bahkan di lingkungan yang bising.
Nikmati panduan pengukuran dan fungsionalitas manajemen data yang mudah dengan perangkat lunak terbaru.

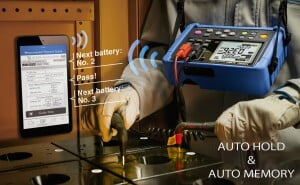

Saat BT3554-50 dipasangkan dengan aplikasi seluler khusus (GENNECT Cross), perangkat seluler akan memberikan panduan audio yang mengumumkan nomor baterai berikutnya yang akan diukur. Fitur ini membantu mencegah pengukuran yang salah. Anda juga dapat mengatur informasi lokasi pengukuran dan nomor baterai terlebih dahulu untuk membuat profil yang akan ditautkan ke data pengukuran dan hasil diagnostik. Kemampuan ini menyederhanakan manajemen data, bahkan saat melakukan pekerjaan diagnostik pada banyak baterai.
Basic specifications
| BT3554-50 | BT3554-51 | BT3554-52 | ||||
| Resistance measurement range | 3 mΩ (max. display 3.100 mΩ, resolution 1 μΩ) to 3 Ω (max. display 3.100 Ω, resolution 1 mΩ), 4 ranges Accuracy: ±0.8 % rdg ±6 dgt (3 mΩ range: ±1.0 % rdg ±8 dgt) Testing source frequency: 1 kHz ±30 Hz With function for avoiding noise frequency enabled: 1 kHz ±80 Hz Testing current: 160 mA (3m/30 mΩ range), 16 mA (300 mΩ range), 1.6 mA (3 Ω range) Open terminal Voltage: 5 V peak |
|||||
| Voltage measurement range | ± 6 V (max. display ±6.000 V, resolution: 1 mV) to ± 60 V (max. display ±60.00 V, resolution: 10 mV), 2 ranges, Accuracy: ±0.08 % rdg ±6 dgt | |||||
| Temperature measurement accuracy | Measurement range: -10°C to 60°C (14°F to 140°F), Maximum display: 60.0°C (140.0°F), Resolution 0.1°C (0.1°F), Measurement accuracy*: ±1.0°C (±1.8°F) * When using the Clip Type Lead with Temperature Sensor 9460. * When using the Temperature Probe 9451, add ±0.5°C (±0.9°F) (cable length: 1.5 m [59.1″]). * When using the Temperature Probe 9451S, add ±0.5°C (±0.9°F) (cable length: 0.1 m [3.94″]). BT3554-50 standalone accuracy with simulated input: ±0.5°C (±0.9°F) |
|||||
| Absolute max. input voltage | 60 V DC max. (No AC input) | |||||
| Measurement time | 100 ms | |||||
| Response time | Approx. 1.6 sec. | |||||
| Comparator | Compares measured values with set threshold values to make judgments and reports them to the user. Judgment notification method: Results are displayed as shown below (segment) and beeping tones sound When the Voltage value (high): Resistance value (low)= PASS, Resistance value (medium)= WARNING, Resistance value (high)= FAIL When the Voltage value (low): Resistance value (low)= WARNING, Resistance value (medium)= WARNING, Resistance value (high)= FAIL If the judgment result is WARNING or FAIL, the audio tone is accompanied by a red backlight. User-selectable voltage judgment method: ABS (absolute value judgment), POL (polarity judgment ) Savable settings: 200 tables |
|||||
| Memory functionality | Operation: Save, load, and delete measurement data, Save and delete profile information, Number of data sets: 6000, Memory architecture: 500 data sets per unit (12 units) Saved data: Saved measurement data is linked to profile information.1. Measurement data: Data can be saved, loaded, and deleted by operating the instrument. -1. Date and time -2. Resistance value, voltage value, and temperature -3. Comparator threshold value and judgment result 2. Profile information: Profile information can be saved, loaded, and deleted using a supported application (GENNECT Cross or GENNECT One). |
|||||
| Measurement Navigator | Operation: Announces the next battery number to be measured via a screen display and audio guidance. Audio output is generated by a connected mobile device when using the Z3210 and a supported application (GENNECT Cross). Preparations: Profile information that’s been registered with a supported application (GENNECT Cross or GENNECT One) must be transferred to the instrument. |
|||||
| Communication interface | USB Bluetooth® wireless communications (when Z3210 installed) |
|||||
| Other functions | Temperature measurement (-10.0 to 60.0 °C), Zero-adjustment, Hold, Auto-hold, Auto-memory, Auto-power-save, Clock | |||||
| Power supply | LR6 (AA) Alkaline dry battery ×8 Continuous operating time: About 8.3 hr. (without Z3210 installed), About 8.2 hr. (with Z3210 installed and wireless communications active) |
|||||
| Dimensions and mass | 199 mm (7.83 in)W × 132 mm (5.20 in)H × 60.6 mm (2.39 in)D (with protector), 960 g (33.9 oz) (including batteries and protector) | |||||
| Accessories | Carrying Case C1014 ×1, Protector Z5041 ×1, Fuse Set Z5050 ×1, 0 Adj Board ×1, Neck strap ×1, USB cable ×1, Application software CD (GENNECT One) ×1, AA alkaline battery (LR6) ×8, User Manual ×1 | |||||
| Instrument only | With Pin Type Lead 9465-10 | With Pin Type Lead L2020 | ||||
Secara akurat menilai kerusakan baterai timbal-asam menggunakan teknologi eksklusif
Battery Tester BT3554-50 yang baru menetapkan standar baru untuk diagnostik baterai UPS dan timbal-asam. Karena resistansi internal dan tegangan baterai diukur menggunakan metode impedansi, diagnostik dapat dilakukan saat baterai terhubung ke perangkat induknya, tanpa membuatnya offline. Teknologi pengurangan kebisingan eksklusif memungkinkan pengukuran yang lebih akurat, bahkan di lingkungan yang bising.
