Harga Hioki IM3570 – Jual Impedance Analyzer Spesifikasi Info Katalog Dan Review

Measurement Signal Level :

Normal mode:
V mode/CV mode: 5 mV to 5 Vrms (up to 1 MHz)
10 mV to 1 Vrms (1.0001 MHz to 5 MHz), 1 mVrms steps
CC mode: 10 μA to 50 mArms (up to 1 MHz)
10 μA to 10 mArms (1.0001 MHz to 5 MHz), 10 μArms steps
Low impedance high accuracy mode:
V mode/CV mode: 5 mV to 1 Vrms (up to 100 kHz), 1 mVrms steps
CC mode:10 μA to 100 mArms (100 mΩ and 1Ω ranges of up to 100 kHz), 10 μArms steps

Category: Tags: , , , ,

Description

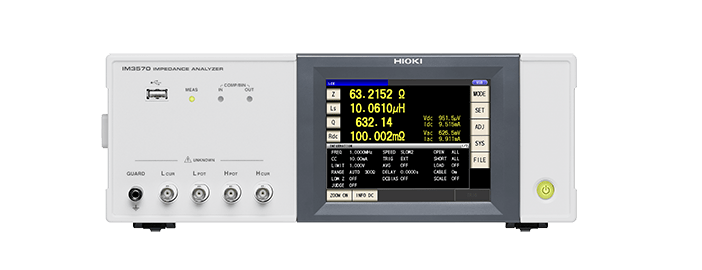

Harga Hioki IM3570 – Jual Impedance Analyzer Spesifikasi Info Katalog Dan Review

Spesifikasi dan Harga Hioki IM3570 Impedance Analyzer

Jual Hioki IM3570 Impedance Analyzer High Speed Testing

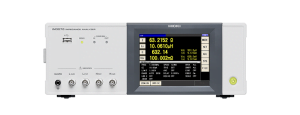

harga hioki im3570



Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM3570 is ideal for use in applications requiring low-ESR measurement on the order of several milliohms, for example testing of functional polymer capacitors, due to its superior low-impedance repeatability.

Key Features

• LCR measurement, DCR measurement, sweep measurement, continuous measurement and high-speed testing achieved with one instrument

• High-speed testing, achieving maximum speeds of 1.5ms (1 kHz) and 0.5ms (100kHz) in LCR mode

• High-accuracy measurements, basic accuracy of Z parameter: ± 0.08%

• Perfect impedance analyzer for testing the resonance characteristics of piezoelectric elements, C-D and low ESR measurement of functional polymer capacitors, DCR and L-Q measurement of inductors (coils and transformers)

• Perform frequency sweeps, level sweeps, and time interval measurements in analyzer mode



Dapatkan harga hioki IM3570 impedance analyzer yang terbaik dikelasnya di Cemandiri Distributor Hioki Indonesia.
