Harga Hioki PW3365 – Jual Clamp On Power Logger Spesifikasi Info Katalog Dan Review

Measurement Item :

Voltage RMS, current RMS, voltage fundamental wave value, current fundamental wave value, voltage fundamental wave phase angle, current fundamental wave phase angle, frequency (U1), voltage waveform peak (absolute value), current waveform peak (absolute value), active power, reactive power, apparent power, power factor (with lag/lead display) or displacement power factor (with lag/lead display), active energy (consumption, regeneration), reactive energy (lag, lead), energy cost display, active power demand quantity (consumption, regeneration), reactive power demand quantity (lag, lead), active power demand value (consumption, regeneration), reactive power demand value (lag, lead), power factor demand

Category: Tags: , , ,

Description

Harga Hioki PW3365 – Jual Clamp On Power Logger Spesifikasi Info Katalog Dan Review

Spesifikasi dan Harga Hioki PW3365 Clamp On Power Logger

Informasi Harga Hioki PW3365 Power Logger Dengan Clamp

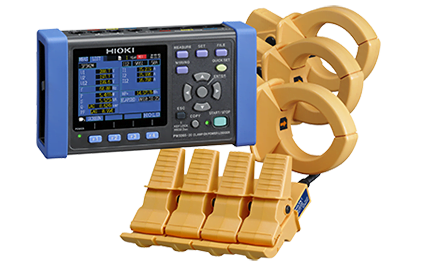

harga-hioki-pw3365

Hioki Clamp On Power Meters are multi-channel power measuring devices utilizing clamp sensor input to accurately and safely measure power on single-phase to three-phase lines. The PW3365 power logger takes safety and convenience one step further by being the world’s first non-metallic contact power meter that utilizes completely covered voltage clips that can be attached to any part of a cable or busbar. Customers can now monitor power demand and other power parameters to aid in energy audits and validate energy saving measures without risk of short-circuit accidents, power interruptions, or bodily injury due to electrocutions.

Key Features

• The PW3365’s dedicated voltage sensor delivers the world’s first no-metal-contact measurement.

• Supports single to three-phase, 4-wire circuits

• Measure between 90V to 520V

• Slim, compact design that can be placed anywhere

• Store months of data on SD cards

• The QUICK SET function guides you in making the right connections



Cemandiri jual clamp logger dengan harga hioki pw3365 lengkap dengan spesifikasi harga dan review. Distributor hioki indonesia yang menyediakan berbagai jenis alat ukur kelistrikan.

whatsapp-logo-png-2273



Power logger adalah alat ukur portabel yang digunakan untuk merekam, memonitor, dan menganalisis data kelistrikan dalam suatu periode waktu tertentu. Biasanya dipakai untuk mengetahui pola konsumsi energi listrik, mendeteksi masalah daya, dan mengevaluasi efisiensi sistem listrik.

📌 Fungsi utama power logger:

  • Mencatat tegangan (V), arus (A), daya (W), energi (Wh/kWh) secara kontinu.

  • Menganalisis kualitas daya: faktor daya (power factor), harmonisa, lonjakan (surge), drop tegangan, dsb.

  • Membandingkan konsumsi listrik antar beban/mesin.

  • Membantu program energy saving dan audit energi.

📌 Komponen utama:

  1. Clamp sensor / current probe → menjepit kabel untuk mengukur arus tanpa memutus rangkaian.

  2. Unit pencatat (logger) → menyimpan data pengukuran dalam memori internal/SD card.

  3. Display/monitor → menampilkan data real-time.

  4. Software/PC interface → menganalisis data dalam bentuk grafik & laporan.

📌 Aplikasi di industri:

  • Audit energi bangunan (pabrik, kantor, rumah sakit, mall).

  • Monitoring konsumsi listrik mesin produksi.

  • Analisis performa genset, UPS, atau panel distribusi.

  • Troubleshooting masalah listrik (drop tegangan, overcurrent, harmonisa).
