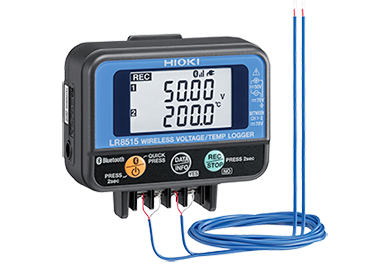

Hioki LR8515 Wireless Voltage Temparature Logger
Jual Hioki LR8515 Wireless Voltage Temparature Logger
Jual Wireless Voltage Temperature Logger Hioki LR8515
Easy, Wireless Collection of a Variety of Data Types, including Voltage Input and Thermocouple Types K and T.
Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. The Hioki LR8515 Wireless Voltage/Temperature Logger provides easy, wireless collection of a variety of data types, including voltage input and thermocouple types K and T, all in a single device.
Key Features
- A single device to measure everything from the minute voltages of pyranometers or heat flow sensors to battery voltage to temperature
- Compact, two-channel model fits where other devices don’t
- Download measurement data to a tablet or computer with Bluetooth® wireless technology or capture in real time with the LR8410
- Three-way power (AC adapter, AA alkaline batteries, or external 5 to 13.5 V power supply)
- Store 500,000 data points per channel
A compact, 2-channel wireless temperature logger with voltage input as well as K and T thermocouple capability
For applications such as
– Checking the correlation of voltage and temperature
– Maintenance of PV systems (while connected to an actinometer)
– Various tests for electronics/automobiles/transportation
– Easily checking heat flows (while connected to a heat flow sensor)
Basic specifications
| Functionality | [Used as standalone product (Data collected manually) ] Windows PC or Windows tablet (CD-R with software included) Android smartphone or Android tablet terminal (Software can be downloaded free of charge from Google Play.) *Communication range varies with the performance of the computer or tablet (up to a line-of-sight distance of roughly 30 m) [Used as logging module (Real-time measurement) ] Device can be used as an LR8410 logging module to record and display data in real time and to control up to 7 units, Communication distance: 30 m |
|||||
|---|---|---|---|---|---|---|
| Number of channels | 2 ch (isolated; select voltage of thermocouple for each channel), Input terminals: M3 screw type terminal block | |||||
| Measurement items | Voltage/ Thermocouple (K, T) | |||||
| Maximum input voltage | ||||||
