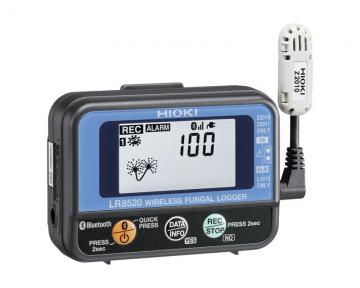

Hioki LR8520 Wireless Fungal Logger
Jual Hioki LR8520 Wireless Fungal Logger
Jual Wireless Fungal Logger Hioki LR8520
Data Logger to Prevent Fungal Occurrence in Business Critical Locations.
Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. The Hioki LR8520 is a wireless and compact 1ch logger that records fungal index and growth prediction to easily prevent fungal growth. The logger utilizes Bluetooth® technology to either send measured data to the Hioki LR8410 Wireless Logging Station or to an Android (TM) tablet.
Key Features
- High-precision ±3% RH humidity sensors
- Calculate and display fungal index*1 and growth prediction
- Measure temperature and humidity other than fungal index and growth prediction
- Compact 1ch logger (Temperature/Humidity each 1 ch input)
- Download measurement data to a tablet or computer with Bluetooth® wireless technology or capture in real time with the LR8410
- Three-way power (AC adapter, AA alkaline batteries, or external 5 to 13.5 V power supply)
- Store 500,000 data points per channel
A compact 1-channel wireless logger that can predict the ease with which fungus grows
<Supported measurement parameter>
Temperature, Humidity, Fungal index, Growth prediction
● Fungal index – Calculated based on temperature and relative humidity –
This index predicts how easy it is for fungi to grow.
The fungal index is indicated by a value from 0 to 200, and can be used to predict the period of time until the start of fungal growth and contamination.
● Growth Prediction – Calculated based on the fungal index –
Since fungal growth occurs when the necessary environmental conditions are maintained over a certain period of time, the cumulative value estimated from the fungal index can be used to predict fungal contamination.
The Hioki LR8520 uses illustrations to indicate fungal growth in 5 stages based on the accumulative value.
Easily Predict Fungal Growth Based on 2 Indices
Basic specifications
| Functionality | [Used as standalone product (Data collected manually) ] Windows PC or Windows tablet (CD-R with software included) Android smartphone or Android tablet terminal (Download app from Google Play) *Communication range varies with the performance of the computer or tablet (up to a line-of-sight distance of roughly 30 m) [Used as an input module (Real-time measurement) ] Device can be used as an LR8410 logging module to record and display data in real time and to control up to 7 units, Communication distance: 30 m |
|||||
|---|---|---|---|---|---|---|
| Number of channels | 1 temperature channel + 1 humidity channel (Humidity sensor Z2010 or Z2011 is required (sold separately)) | |||||
| Display items | Temperature, humidity, fungal index (0 to 200), growth prediction (5 levels) | |||||
| Measurable range | [Temperature] -40˚C to 80˚C, Range 100˚C f.s., Max. resolution 0.1˚C [Humidity] 0% to 100% RH, Range 100% RH f.s., Max. resolution 0.1% RH |
|||||
| Measurement accuracy (using Z2010/Z2011) |
[Temperature] ±0.5 ˚C (10˚C to 60˚C), If outside above temperature range: Add 0.015 ˚C/ ˚C (-40 ˚C to 10 ˚C) or 0.02˚ C/ ˚C (60 ˚C to 80 ˚C) [Humidity] ±3% RH (20˚C to 30 ˚C, 20% to 90% RH), Hysteresis: ±1% RH (Added to the humidity measurement accuracy) |
|||||
| Other functions | Measurement value, Date, Time, Number of recorded data, Maximum value, Minimum value, Average value, Alarm, Scaling, Recording operation hold function, Erroneous operation prevention, Comment recording function, Power saving function, Authentication function, Free run | |||||
| Recording | [Capacity] 500,000 data items for each channel [Mode] Instantaneous value [Interval] 0.5 sec to 30 sec, 1 min to 60 min, 14 selections | |||||
| Power supply | ACAdapter Z2003 (100 to 240 V AC, 50 /60 Hz), AA alkaline batteries (LR6) × 2, External power 5 to 13.5 V DC (can also be supplied from USB bus power via a conversion cable) | |||||
| Continuous operating time ([Capacity] 500,000 data items for each channel) (23˚C) |
3.5 months (Recording interval of 1 min, Bluetooth® OFF), 20 days (Recording interval of 1 sec, Bluetooth® ON), 5 days (Recording interval of 0.5 sec, during real-time measurement with the LR8410) | |||||
| Dimensions and mass | 85 mm (3.35 in) W × 61 mm (2.40 in) H × 31 mm (1.22 in) D (Excluding protrusions), 95 g (3.3 oz) (Not including the battery) | |||||
| Accessories | CD-R (Instruction Manual, Logger Utility, Wireless Logger Collector) ×1, Measurement Guide ×1, Caution for Using Radio Waves ×1, AA alkaline batteries (LR6) ×2 , Connection cable L1010 ×1 | |||||
