Jual Megger BM5200 Insulation Resistance Tester – Beli Info Harga Spesifikasi Katalog dan Review

Megger designs and manufactures portable electrical test equipment. Megger products help you install, improve efficiency, reduce cost and extend the life of your or your customers’ electrical assets.

Categories: , Tags: , , ,

Description

Jual Megger BM5200 Insulation Resistance Tester – Beli Info Harga Spesifikasi Katalog dan Review

Megger BM5200 Insulation Tester – Jual Beli Info Harga Spesifikasi Katalog dan Review

Spesifikasi Insulation Tester Megger BM5200



Overview :

  •   1 T Ω, 1.4 mA, 5 kV digital insulation tester with digital and analogue display
  •   Five test ranges; 250 V, 500 V, 1000 V, 2500 V and 5000 V
  •   Insulation (InS), Polarization Index (PI) and variable timed test (t) modes
  •   Selectable DC or AC (including frequency) voltmeter functions
  •   Guard terminal to shunt surface leakage currents
  •   CATIII 600 V safety rating

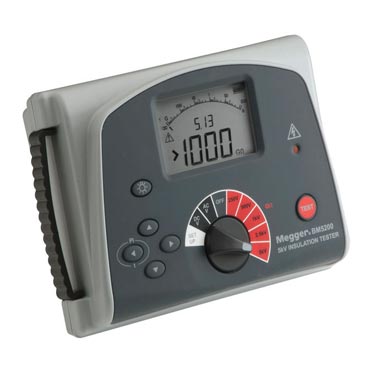

Megger BM5200 is a battery powered insulation tester with digital and analogue arc display, designed for high voltage insulation resistance testing in the maintenance and servicing of cables, rotating plant machinery, transformers, switchgear and industrial applications.

DC insulation tests are performed at 250 V, 500 V, 1000 V, 2500 V, 5000 V. Insulation resistance measuring range is 100 k Ω to 1000 G Ω. Automatic discharge for capacitive circuits under test is provided and decaying voltage displayed.

The guard terminal can be used to minimize the effects of surface leakage and hence erroneous measurements when carrying out insulation resistance tests.

Cemandiri agen distributor megger  Indonesia Jual Megger BM5200 Insulation tester.

whatsapp-logo-png-2273



Insulation tester adalah alat ukur listrik yang digunakan untuk mengukur tahanan isolasi (insulation resistance) pada kabel, motor, generator, transformator, atau peralatan listrik lainnya.

Alat ini bekerja dengan cara memberikan tegangan DC tinggi (misalnya 250 V, 500 V, 1000 V, bahkan hingga 5 kV) ke material isolasi, lalu mengukur resistansinya dalam satuan Ohm atau Megaohm (MΩ).

🔹 Fungsi utama insulation tester

  • Mengecek kualitas isolasi kabel dan peralatan listrik.

  • Mendeteksi adanya kelembapan, kotoran, atau kerusakan pada isolasi.

  • Mencegah risiko korsleting, arus bocor, atau kebakaran listrik.

  • Dilakukan dalam instalasi baru maupun pemeliharaan berkala (maintenance).

🔹 Cara kerja singkat

  1. Alat memberikan tegangan DC tinggi ke objek uji.

  2. Arus bocor yang lewat isolasi diukur.

  3. Nilai resistansi isolasi dihitung → semakin besar nilainya, semakin baik isolasinya.

🔹 Standar hasil pengukuran (umum)

  • >100 MΩ → sangat baik (isolasi sehat).

  • 1 – 100 MΩ → masih aman, tapi perlu pemantauan.

  • <1 MΩ → isolasi bermasalah/berbahaya.

(Nilai acuan bisa berbeda tergantung standar IEC/IEEE dan tegangan kerja peralatan.)

🔹 Jenis insulation tester

  1. Portable / Handheld Insulation Tester

    • Ringkas, dipakai teknisi lapangan (contoh: Hioki IR405x, Megger MIT).

  2. High Voltage Insulation Tester (5–15 kV)

    • Dipakai untuk uji trafo besar, motor tegangan tinggi, kabel HV.

  3. Multifunction Tester

    • Gabungan insulation test dengan pengujian instalasi listrik lain (RCD, loop, continuity).
