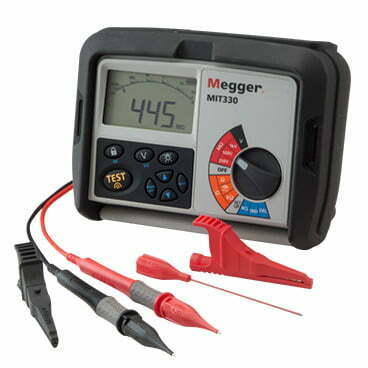

Jual Megger Insulation Tester MIT300 Series

A Job reference number can be selected for a range of results, allowing separate locations to be tested with the same tester and easily separated when downloaded.

A memory bar graph acts as a ‘Fuel Gauge’ showing how much memory has been used. Test results are downloaded to CSV (Coma Separated Variable) spreadsheets. If certificates or reports are required, the results can be downloaded directly into Megger Powersuite Professional with a range of features for creating professionally finished documentation.

All testers come complete with a full calibration certificate. For users who prefer a true analogue device, however, Megger is offering the MIT310A which has features similar to those of the MIT310, but with a conventional moving-coil meter movement in place of the digital display.

Categories: , Tags: , , , , ,

Description

Jual Megger Insulation Tester MIT300 Series

Jual Insulation Tester megger MIT300 Series – Beli info harga spesifikasi katalog dan review

Spesifikasi Megger MIT300 Series Insulation tester



Overview :

  •  Extremely easy to use
  •  Tough rubber armoured case
  •  Self contained protective cover
  •  Live circuit warning
  •  Weatherproof to IP54
  •  Intelligent Safety System for protection.

MEGGER INSULATION TESTERS COMBINE SAFETY WITH DURABILITY

Developed, after extensive customer research, specifically to meet the needs of today’s electrical contractors, the new MIT300 range of insulation and continuity testers from Megger is not only durable and easy to use, but also incorporates a comprehensive set of features designed to ensure operator safety, even under conditions of accidental misuse.

The range includes four models, ensuring an exact match for the needs of every user, all of which offer automatic discharge of the circuit after testing, audible and visual warning if the test probes are applied to a live circuit, and a test inhibit feature which operates automatically under live circuit conditions. The units also conform fully to IEC 61010-1 for use in Category III 600V applications, and provide all of the facilities needed to meet insulation testing requirements relating to the current edition of the IEE Wiring Regulations.

In line with other products in Megger’s comprehensive new contractor range, MIT300 insulation testers feature rugged construction, with an impact-resistant rubber-overmoulded case, and innovative circuitry which guarantees high accuracy combined with stability of calibration.

All instruments in the new range provide indication of insulation resistance up to 999Mohms, 200mA continuity testing, a fast-reacting continuity buzzer, and facilities for nulling the resistance of the test leads. The entry-level MIT300 offers insulation test voltages of 250V and 500V, while the remaining models allow testing at 250V, 500V and 1,000V.

In addition to the basic features, the mid-range MIT310 adds a default voltmeter function, while the MIT320 supplements these facilities with an a backlit display, illuminated range panel, insulation limit alarm, resistance measurement, and an adjustable threshold for the continuity buzzer. The MEGIT320 is also supplied with a switched test probe to speed hands free testing.

An illuminated switched test probe is available as an optional extra for use with the MIT320.

The MIT310, MIT320 and MIT330 testers incorporate dual solid-state displays which simultaneously show the test results numerically, and in the form of a moving-arc bar graph that accurately simulates the operation of an analogue meter.

The MIT330 additionally offers the facility to save test results to internal memory. Over 1000 result can be saved on site, and downloaded to a computer when convenient.

Data is stored in non-volatile memory, being retained when the instrument is switched off or batteries are exhausted.



Cemandiri agen distributor megger indonesia jual megger insulation tester MIT300 Series



whatsapp-logo-png-2273



Insulation tester adalah alat ukur listrik yang digunakan untuk mengukur tahanan isolasi (insulation resistance) pada kabel, motor, generator, transformator, atau peralatan listrik lainnya.

Alat ini bekerja dengan cara memberikan tegangan DC tinggi (misalnya 250 V, 500 V, 1000 V, bahkan hingga 5 kV) ke material isolasi, lalu mengukur resistansinya dalam satuan Ohm atau Megaohm (MΩ).

🔹 Fungsi utama insulation tester

  • Mengecek kualitas isolasi kabel dan peralatan listrik.

  • Mendeteksi adanya kelembapan, kotoran, atau kerusakan pada isolasi.

  • Mencegah risiko korsleting, arus bocor, atau kebakaran listrik.

  • Dilakukan dalam instalasi baru maupun pemeliharaan berkala (maintenance).

🔹 Cara kerja singkat

  1. Alat memberikan tegangan DC tinggi ke objek uji.

  2. Arus bocor yang lewat isolasi diukur.

  3. Nilai resistansi isolasi dihitung → semakin besar nilainya, semakin baik isolasinya.

🔹 Standar hasil pengukuran (umum)

  • >100 MΩ → sangat baik (isolasi sehat).

  • 1 – 100 MΩ → masih aman, tapi perlu pemantauan.

  • <1 MΩ → isolasi bermasalah/berbahaya.

(Nilai acuan bisa berbeda tergantung standar IEC/IEEE dan tegangan kerja peralatan.)

🔹 Jenis insulation tester

  1. Portable / Handheld Insulation Tester

    • Ringkas, dipakai teknisi lapangan (contoh: Hioki IR405x, Megger MIT).

  2. High Voltage Insulation Tester (5–15 kV)

    • Dipakai untuk uji trafo besar, motor tegangan tinggi, kabel HV.

  3. Multifunction Tester

    • Gabungan insulation test dengan pengujian instalasi listrik lain (RCD, loop, continuity).
