Megger ADX Automated Static Motor Analyser
Jual Megger ADX Automated Static Motor Analyser
Spesifikasi Produk Megger ADX Automated Static Motor Analyser

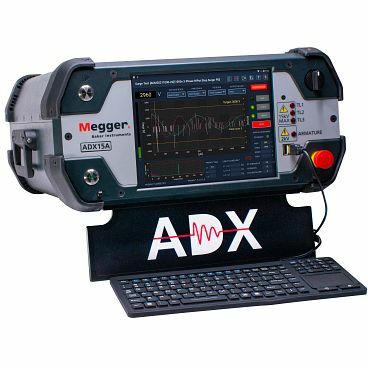

Megger ADX The Megger Baker ADX automated static motor analyser is an innovative and transformational leap forward for motor testing in today’s demanding workplaces. It offers a comprehensive set of tests for assessing the health of electric motors, for monitoring and analysing trends in motor condition, and for locating faults.The portable ADX analysers provide, depending on the model, high voltage tests for surge, turn-to-turn partial discharge, insulation resistance, polarisation index, DC hi-pot and step voltage tests, as well as low voltage tests for winding resistance, inductance, and capacitance. A single set of plug-in high voltage Kelvin test leads means there is no need to change leads between tests.
Overview :
- Asset-centric approach promotes turnkey testing for operators
- Separating asset from installation provides greater insight into asset service needs and issues
- PowerDB dashboard secure cloud-based analysis software
- Choice of manual, automatic, or sequence testing
- Screen-level context sensitive help
- Adaptable search capability
- Asset management tools
All ADX analysers offer a choice of manual, automatic or sequenced testing. They also support configurable route-based site testing and incorporate a full range of asset management tools. Test results are displayed on an integrated 10.4-inch daylight viewable touch screen and are stored locally within the instrument. In addition, when an internet connection is available, the results are automatically synchronised with the cloud-based PowerDB Dashboard application which provides additional facilities for analysis, reporting, and archiving.
Megger Baker ADX static motor analysers are available in versions that support high voltage testing up to 4 kV, 6 kV, 12 kV, or 15 kV. All can be supplied in a basic configuration that offers DC insulation resistance, polarisation index, DC hi-pot and surge tests only, or in configurations with additional options that include low voltage resistance, inductance, and capacitance test, and facilities for partial discharge testing. A 15 kV unit with integral bar-to-bar surge test capability for DC armatures is also available.
Jual Megger ADX Automated Static Motor Analyser
Cemandiri distributor megger Indonesia Jual Produk Megger ADX untuk seluruh wilayah indonesia. Untuk informasi penawaran harga dan konsultasi produk hubungi kami.
Static Motor Analyser
Dapatkan penawaran harga produk static motor analyser termurah dan terpercaya hanya di cemandiri.com Dipercaya menjadi authorized distributor berbagai merek ternama yang sudah terjamin kualitasnya. Lakukan permintaan penawaran harga terbaik dari produk static motor analyser yang anda butuhkan , sebelum mengambil keputusan untuk melakukan pembelian static motor analyseranda bisa menghubungi team sales engineer kami untuk melakukan presentasi seputar produk static motor analyser di tempat anda. Untuk katalog produk bisa anda dapatkan dilaman produk static motor analyser di situs kami cemandiri.com Untuk pertanyaan lanjut seputar produk static motor analyser bisa chat kami via whatsapp.
Harga Jual static motor analyser Terbaru
Belanja produk static motor analyser dengan harga yang kompetitif dengan penawaran harga terbaik , berbagai jenis static motor analyser bisa anda dapatkan di cemandiri.com pusat alat ukur ternama dari brand brand dunia. Untuk mendapatkan penawaran harga bisa melalui email ke sales@cemandiri.com untuk respon permintaan harga cepat bisa hubungi team sales kami via whatsapp. Semua produk static motor analyser dari kami bergaransi resmi dari brand principal. Kualitas dan harga terbaik adalah layanan prioritas dari kami untuk anda sekalian.
