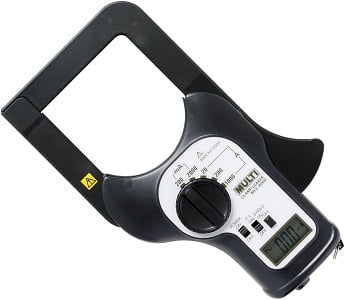

Mutimic MCL-800D Digital Clamp Tester with 80mmφ CT | Jual Beli Info Spesifikasi Harga Dan Review

Spesification :



Measuring method Dual slope integration mode
Display 3.5 digit LCD, max. reading of 1999
Accuracy 23℃±5℃ 80%RH or less (50/60Hz)
Range/Resolution/Accuracy
AC 200mA/0.1mA/±2.0% rdg ± 5 dgt
AC 2A/1mA/±2.0% rdg ± 5 dgt
AC 20A/10mA/±2.0% rdg ± 5 dgt
AC 200A/0.1A/±2.0% rdg ± 5 dgt
AC 1000A/1A/±2.0% rdg ± 5 dgt
Jaw opening capability 80mmφ
Over range indication Blanking of all digits except MSD 1
Data hold indication “H・D” mark on LCD
Low battery indication “B” mark on LCD
Data output DC100mV (for full scale)
Sampling 2 times/sec
Withstanding Voltage AC 2000V 1 minute max. (Between the core of CT and outer case)
Limitation of circuit voltage Less than AC 600V
Operating Temperature 0℃ to 40℃, 80%RH max. ( Without condensation )
Storage Temperature -10℃ to 60℃, 70%RH max. ( Without condensation )
Power supply 1.5V (AM-4, LR03 or AAA)×2
Power consumption 3 mW
Battery life Approx. 350 hours ( Alkaline batteries )
Size 138(W)×225(H)×37(D)mm
Weight Approx. 500g
Accessories Hard carrying case:1
Instruction manual:1
Batteries:2
Category: Tags: , , , ,

Description

Multimic MCL-800D Digital Clamp Tester with 80mmφ CT | Jual Beli Info Spesifikasi Harga Dan Review

Jual MCL-800 Multi Digital Clamp Tester denan CT 80mmφ

Produk Clamp Tester Jual MCL-800 Multi

jual-mcl800-multi

AC Leakage Current, 200mA/2A/20A /200A/1000A, 80mmφ CT

FEATURES

80mmφCT window and wide current measurements from 0.1mA to 1000A.
DCmV analog data output for recorder.
Least affection from the external magnetic field.

Cemandiri Jual MCL-800 Multi Digital Clamp Tester dengan informasi beli , harga, spesifikasi dan katalog review.
